Sheet cut-to-length line
Sheet cut-to-length line: FiMi
Equipment description:
1. Protective coating, line marking and paper interleaved are available by customer's request.
2. The high-speed cutting machine has a double-knife head, a rotary shear design that automatically corrects the knife gap, and a six-fold leveling machine. These designs can effectively ensure the quality of product.
Introduction
| Product type | Sheet | |
| Surface finishes | No.2B / BA / No.3 / No.4 / Scotch brite(No.5) / H.L | |
| Grade | 300 series、400 series | |
| Thickness (mm) | 0.40 ≦ t ≦ 3.00 | |
| Length (mm) | 700 - 3,048 | 3,048 - 6,000 |
| Length tolerance (mm) | - 0.0 / + 1.0 | - 0.0 / + 2.0 |
| Diagonal tolerance (mm) | - 0.0 / + 1.0 | - 0.0 / + 3.0 |
| Flatness tolerance (1M) | 10.0 mm | |
| Others | ￭Line marking on main side or back side. ￭Slitting, film laminating on main side, back side and both sides. |
|

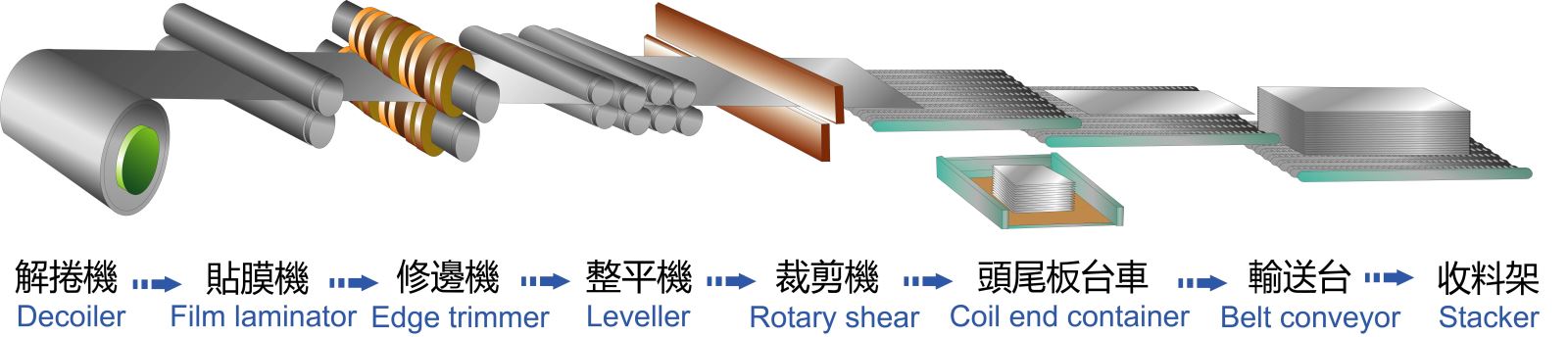

Manufacturing process
