Polishing line

Polishing line：imeas



Equipment description:

Equipment description:

1. Can polish No.3, No.4, Scotch brite(No.5) and HL products with different surface finishes, and able to meet the quality requirement of various specifications.

2. Dry polishing is most suitable for the selection of products that need to be painted again. It only needs to be rinsed and dried with water before coating (no needs to alkali cleaning and remove oil).
3. Can process both main side and back pass simultaneously.

4. The continuous process of coil to coil can reduce its loss effectively.

Introduction

Product type Coil
Surface finishes No.3 / No.4 / Scotch brite(No.5) / H.L
Grade 300 series、 400 series
Thickness(mm) 0.40 ≦ t ≦ 3.00
Width range(mm) 800-1,554
Flatness tolerance(1M) 10.0 mm
Others ￭Dry polishing.
￭Polishing on main side and back side.

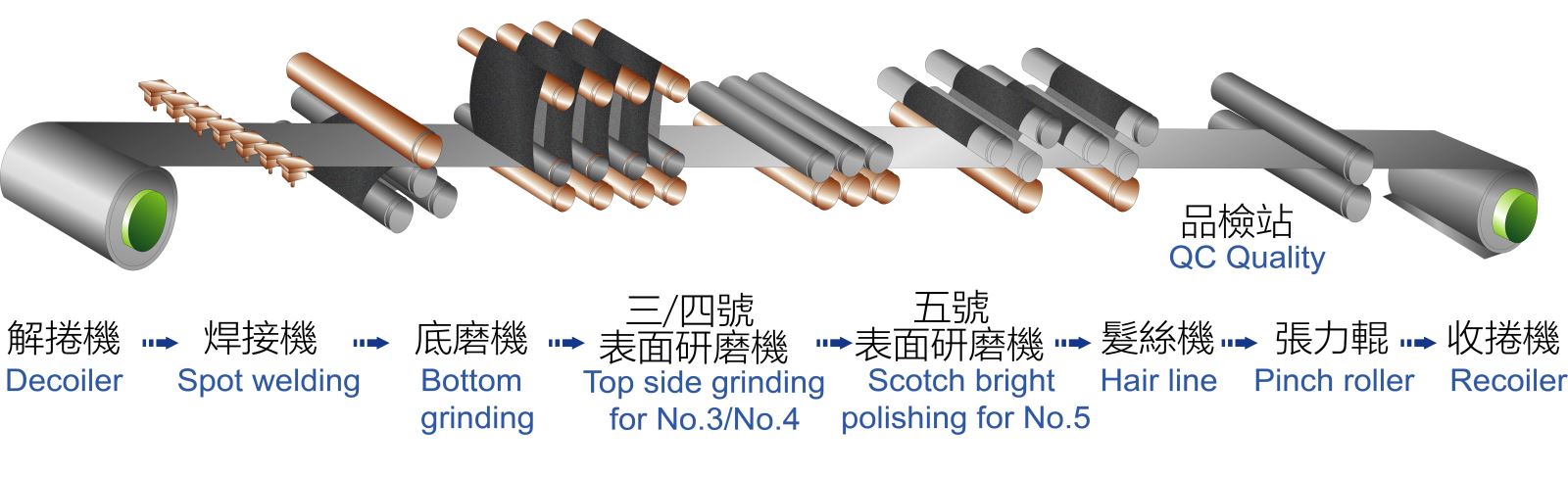

Manufacturing process
