Plate cut-to-length line

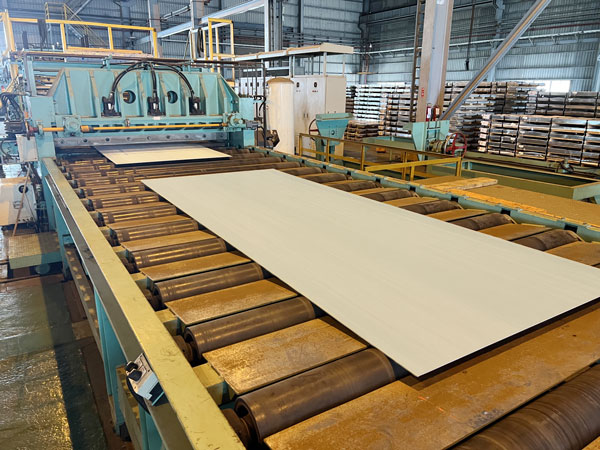

Plate cut-to-length line: Cutting (stop cutting) equipment
Equipment description:
1. In order to avoid scratches on the steel plate, YM uses air cylinders to either automatically or manually control the loading and unloading to ensure the quality of the product.
2. Protective coating, paper interleaved and line marking are available by customer's request.
Introduction
| Product type | Sheet | ||
| Surface finishes | No.1 / No.2B | ||
| Grade | 300series、 400series | ||
| Thickness (mm) | 3.00 ≦ t ≦ 14.00 | ||
| Length (mm) | 800 - 3,000 | 3,000 - 6,000 | 6,000 - 10,000 |
| Length tolerance (mm) | -0.0 / +1.0 | -0.0 / +1.5 | -0.0 / +2.0 |
| Diagonal tolerance (mm) | ±2.0 | ±3.0 | ±4.0 |
| Flatness tolerance (1M) | 10.0mm | ||
| Others | ￭ Line marking available for main side or back side. | ||

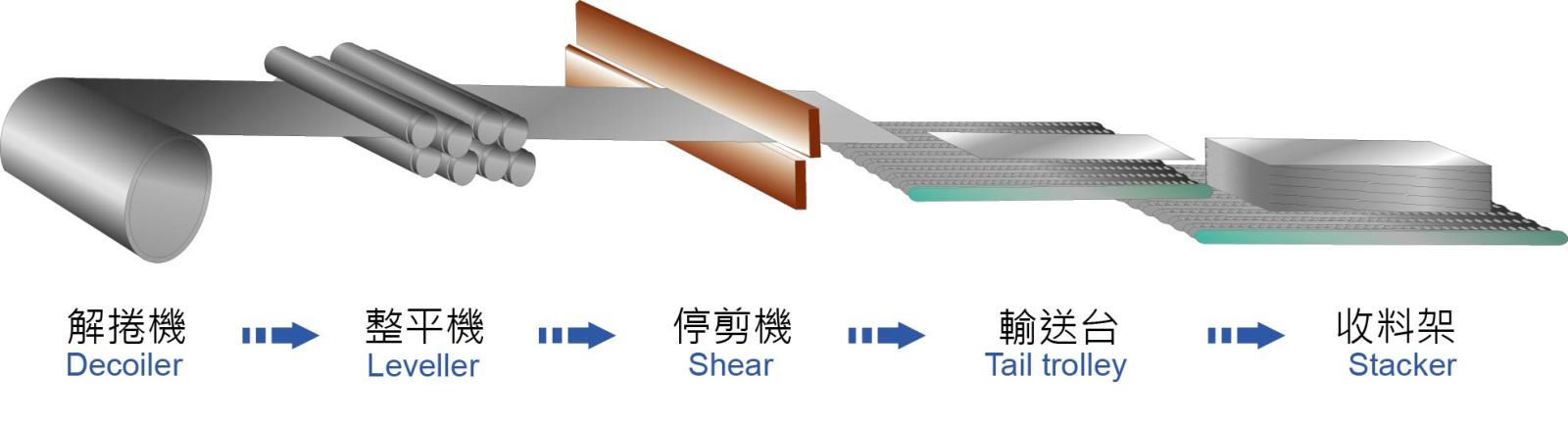

Manufacturing process
.jpg)
